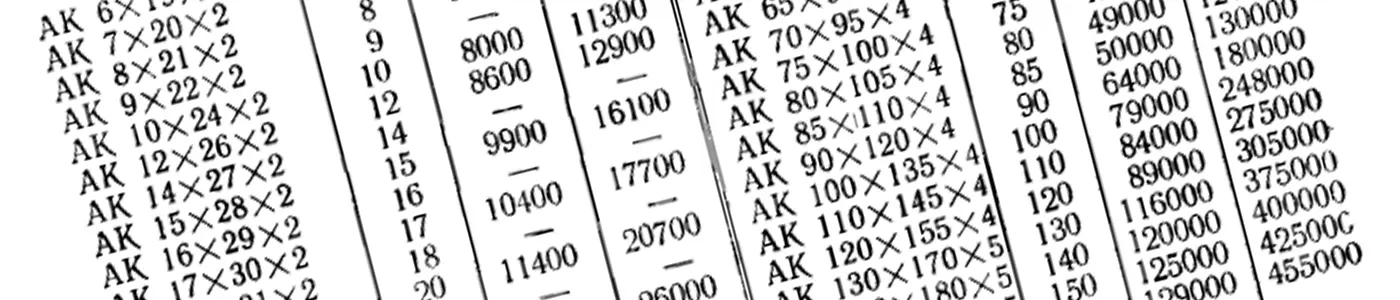

Таблица размеров игольчатых упорных колец
| ISO | Гост | Размеры мм | Грузоподъёмность (Кн) | Скорость вращения (об/мин) | Масса (гр) | Взаимодействующие кольца | Размеры (мм) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | D | de | De | Bx | Динамич. | Статич. | Рекомендуемая | Макс | AS… | LS… | GS811… | WS811… | dgs | Dws | B | Bas | r | |||
| AXK 2035 | 999904 | 20 | 35 | 22 | 34 | 2 | 13,1 | 46,5 | 2790 | 9000 | 5 | AS 2035 | LS2035 | GS81104 | WS81104 | 21 | 35 | 2,75 | 1 | 0,3 |
| AXK 2542 | 999905 | 25 | 42 | 29 | 41 | 2 | 14,7 | 58 | 2520 | 7650 | 7 | AS 2542 | LS 2542 | GS81105 | WS81105 | 26 | 42 | 3 | 1 | 0,6 |
| AXK 3047 | 219806 | 30 | 47 | 34 | 46 | 2 | 16,3 | 70 | 2070 | 6750 | 8 | AS 3047 | LS 3047 | GS81106 | WS81106 | 32 | 47 | 3 | 1 | 0,6 |
| AXK 3552 | 999707 | 35 | 52 | 39 | 51 | 2 | 17,8 | 81 | 1800 | 5850 | 10 | AS 3552 | LS 3552 | GS81107 | WS81107 | 37 | 52 | 3,5 | 1 | 0,6 |
| AXK 4060 | 219808 | 40 | 60 | 45 | 58 | 3 | 28 | 114 | 1530 | 5400 | 16 | AS 4060 | LS4060 | GS81108 | WS81108 | 42 | 60 | 3,5 | 1 | 0,6 |
| AXK 4565 | 219809 | 45 | 65 | 50 | 63 | 3 | 30 | 128 | 1350 | 4500 | 18 | AS 4565 | LS 4565 | GS81109 | WS81109 | 47 | 65 | 4 | 1 | 0,6 |
| AXK 5070 | 219810 | 50 | 70 | 55 | 68 | 3 | 32 | 143 | 1260 | 4320 | 20 | AS 5070 | LS 5070 | GS81110 | WS81110 | 52 | 70 | 4 | 1 | 0,6 |
| AXK 5578 | 219811 | 55 | 78 | 60 | 76 | 3 | 38 | 186 | 1080 | 3870 | 28 | AS 5578 | LS 5578 | GS81111 | WS81111 | 57 | 78 | 5 | 1 | 0,6 |
| AXK 6085 | 219812 | 60 | 85 | 65 | 83 | 3 | 44,5 | 234 | 990 | 3600 | 33 | AS 6085 | LS 6085 | GS81112 | WS81112 | 62 | 85 | 4,75 | 1 | 1 |
| AXK 6590 | 219813 | 65 | 90 | 70 | 88 | 3 | 46,5 | 255 | 900 | 3330 | 35 | AS 6590 | LS 6590 | GS81113 | WS81113 | 67 | 90 | 5,25 | 1 | 1 |
| AXK 75100 | 219815 | 75 | 100 | 79 | 98 | 4 | 55 | 265 | 855 | 2970 | 61 | AS 75100 | LS 75100 | GS81115 | WS81115 | 77 | 100 | 5,75 | 1 | 1 |
| AXK 80105 | 219816 | 80 | 105 | 84 | 103 | 4 | 56 | 280 | 810 | 2790 | 63 | AS 80105 | LS 80105 | GS81116 | WS81116 | 82 | 105 | 5,75 | 1 | 1 |
| AXK 85110 | 219817 | 85 | 110 | 89 | 108 | 4 | 58 | 290 | 765 | 2700 | 67 | AS 85110 | LS 85110 | GS81117 | WS81117 | 87 | 110 | 5,75 | 1 | 1 |
